Product Details:
|
| Private Mold: | Yes | Products Status: | Stock, Stock |
|---|---|---|---|
| Type: | Rack | Processor Main Frequency: | Other |
| Processor Type: | Intel Xeon Series, Intel Xeon Series | Form Factor/Height: | 2U Rack |
| Power Supply Type: | 550W/900W/1500W/1200W | Memory Slot: | 24 DDR4 RDIMM |
| Hard Disk Location: | 8*2.5inch | GPU: | Supports Two Full-height Gpus |
| Network Port: | Double Port Gigabit | PCIe: | 10 PCIe3.0 Expansion Slot |
Parameter | Description |
Model | FusionServer 2288H V5 |
Form Factor | 2U, 2-socket rack server |
Processors | 1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W 1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W |
Memory | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s |
Local Storage | Supports hot-pluggable drives with the following configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs 12/16/20 x 3.5-inch SAS/SATA HDDs 4, 8, 12, 24, or 28 NVMe SSDs 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SSDs |
RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60 Configured with a supercapacitor for cache power-off protection (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
Network Ports | LOM: 2 x 10 GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports |
PCIe Expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC |
Power Supply | 2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: 550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs |

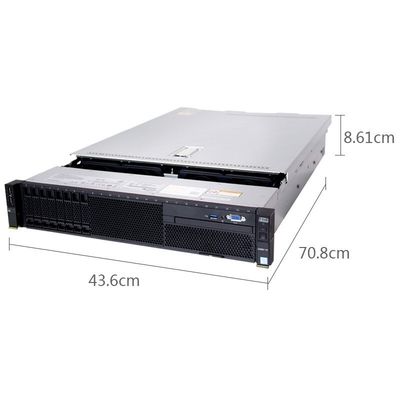

Dimensions (H x W x D) | Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
Processor Type | intel xeon silver 4210R*2 |
Processor Main Frequency | 2.4Ghz |
Form Factor/Height | 2U Rack |
Products Status | Stock |
Power | 550W |
Memory slot | 24 DDR4 RDIMM |
Hard disk location | 8*2.5inch |
GPU | Supports two full-height Gpus |
Network port | Double port gigabit |
