Product Details:
|
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|
| Type: | Rack | Processor Main Frequency: | 3.4GHz |
| Processor Type: | Intel Xeon E-2224 | Product Name: | PowerEdge T140 |
| Processor: | Intel Xeon E-2224 | CPU Dominant Frequency: | 3.4 GHz |
| Number Of Cores: | 4 Core | Memory: | 8G ECC |
| Hard Disk: | 1T SATA 7.2K | NI(network Interface): | 2 Gigabit Network Port |
| CS(chipset): | Intel C246 | System: | Windows Server/Redhat/ubuntu |
| Warranty: | 3 Years |
processor | An Intel Xeon E-2200 series processor with up to eight cores, or an Intel Pentium processor with up to two cores |
memory | • Four DDR4 DIMM slots supporting up to 128 GB UDIMMs and speeds up to 3200 MT/s • Only registered ECC DDR4 DIMMs are supported Note: For Pentium processors, the maximum memory speed supported is 2666 MT/s |
Memory controller | • Internal controllers (RAID) : PERC H755, PERC H345, S150 • Internal Boot: Boot Optimized Storage Subsystem (BOSS-S1) : HWRAID 2 x M.2 SSD, USB •12 Gbps SAS Hbas (non-RAID) : internal - HBA355i, external - HBA355e |
Driver bracket | 4 x 3.5 inch cable SAS or SATA (HDD or SSD), maximum 30.72 TB |
Power supply unit | 300 W Bronze AC/240 V |
fan | One wired fan |

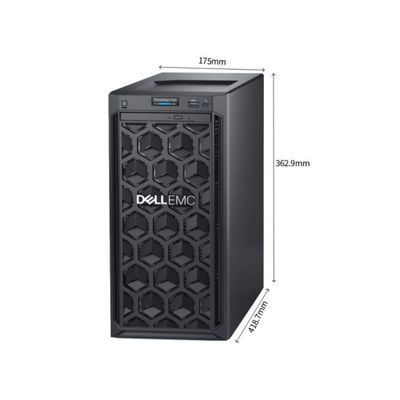

dimension | • Height: 360 mm (14.17 in) • Width: 175 mm (6.88 in) • Depth: 453.75 mm (17.86 in) with flapper |
Contour specification | 4U tower server |
Embedded management | • iDRAC9 •iDRAC Direct • iDRAC RESTful with Redfish •iDRAC Service Module |
baffle | Safety damper |
OpenManage software | •OpenManage Enterprise •OpenManage Power Manager plug-in •OpenManage SupportAssist plug-in •OpenManage Update Manager plug-in |
mobility | OpenManage Mobile |
security | • Encryption signature firmware • Safe guidance • Secure erasure • Wafer trust root • System lock (requires iDRAC9 Enterprise or Datacenter) •TPM 2.0 FIPS, CC-TCG certification and TPM 2.0 China NationZ |
Embedded NIC | 2 x 1 GbE LOM |
port | preport •1 x iDRAC Direct (Micro-AB USB) port •1 USB 3.0 Back port •5 USB 2.0 •1 USB 3.0 •1 serial port •1 VGA Internal port •1 USB 3.0 |
PCIe | Two PCIe 4.0 slots and two PCIe 3.0 slots |
Operating system and virtual machine hypervisor | •Canonical Ubuntu Server LTS •Citrix Hypervisor • Microsoft Windows Server with Hyper-V •Red Hat Enterprise Linux •SUSE Linux Enterprise Server •VMWare ESXi * Supported from December 2021 only For more information about specifications and interoperability, see Dell.com/OSsupport. |
CS(chipset) | Intel C246 |
Warranty | 3 Years |
